Anchor Chain Ballast Block Transport

Anchor chain ballast blocks fall into the category of ultra‑heavy, regularly shaped cast iron or cast steel components. They are used to increase the catenary weight of anchor chains and enhance holding power. Individual pieces are heavy and compact in structure. During transport, anti‑slip measures and surface protection are key priorities.

• Individual pieces are extremely heavy: cast iron ballast blocks can weigh from several tonnes to over ten tonnes per piece, requiring heavy‑duty vehicles and lifting gear.

• The shape is mostly rectangular or trapezoidal, with sharp edges and corners. While they are relatively stable to place, the edges are vulnerable to impact damage.

• High surface coating requirements: they are typically coated with anti‑rust paint or epoxy. Lashing gear must be prevented from abrading the coating and causing impact damage.

• When multiple pieces are shipped together, they must be tightly packed and pressed against each other to prevent loosening and shifting during vessel rolling.

• Precision mounting interfaces: machined surfaces such as connection holes and bolt holes must be protected against corrosion and damage.

JYC Supply Chain: Providing a Comprehensive Integrated Logistics Service System

JYC handles a full range of product types, including cast iron ballast blocks, steel ballast blocks, anchor chain counterweights, and other mooring system counterweight components. Based on individual piece weight and dimensions, we customise the transport solution and manage the entire process from port consolidation to shipment.

Domestic pick‑up → lifting solution + vessel type matching → lashing and securing → port delivery → ocean freight booking → destination delivery

Step 1: Domestic Inland Transport
Clients may either arrange delivery to our designated port consolidation yard themselves or authorise us to provide door‑to‑door pick‑up. We operate a fleet of heavy‑duty low‑bed trailers covering major foundry bases nationwide. Based on individual piece weight, we deploy the appropriate vehicle to ensure safe delivery to the consolidation yard.

Step 2: Lifting Solution + Vessel Type Matching
Lifting points are determined according to the weight and shape of the ballast blocks, using spreader beams and dedicated lifting gear to ensure stable lifting. Based on batch quantity and total weight, we select the appropriate vessel type and develop a stowage plan.

Step 3: Lashing and Securing
All operations comply with shipping line requirements and industry standards.

Our lashing solution:

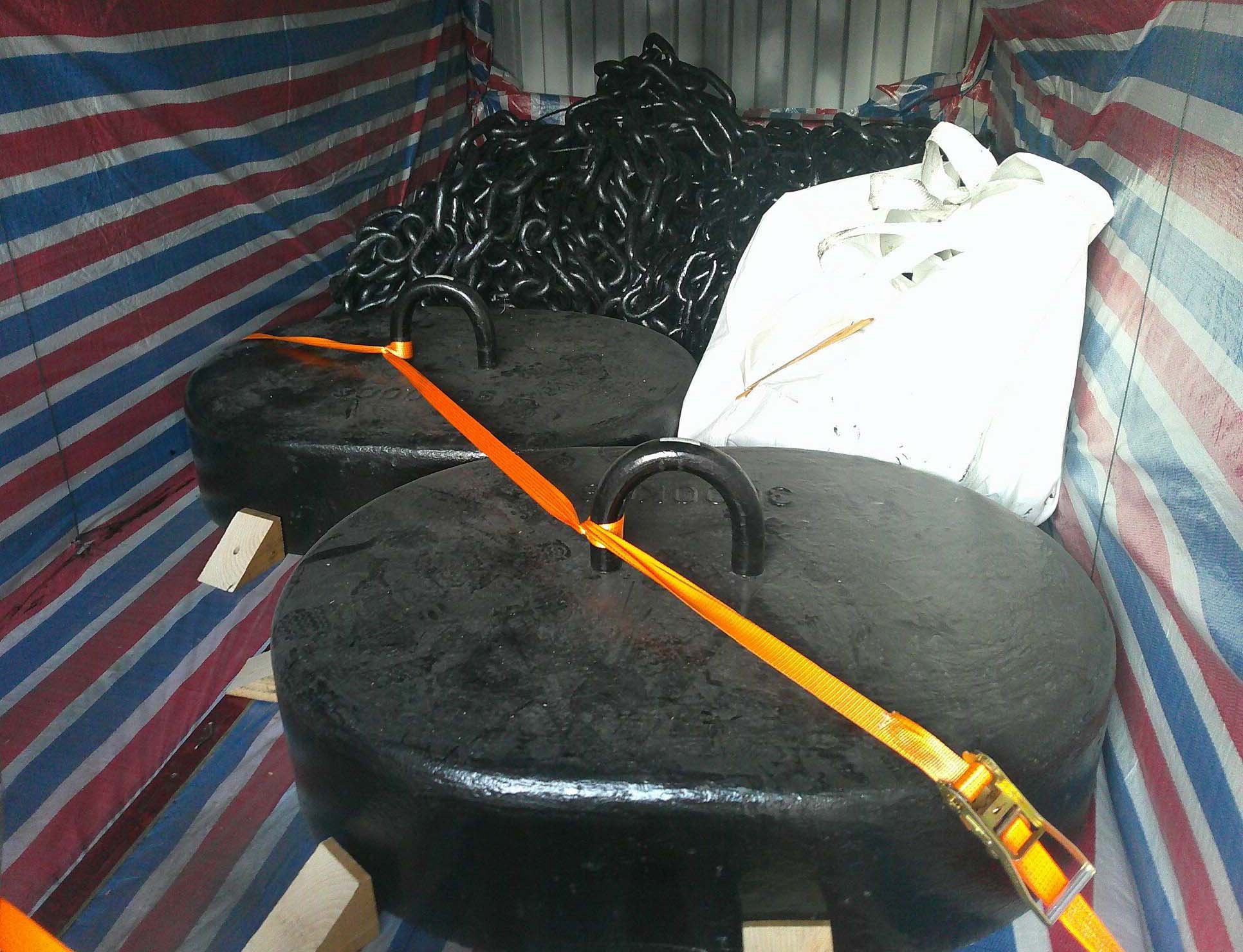

• Ballast blocks are placed flat in the container, with timber sleepers or rubber pads underneath to increase friction and protect the coating.

• Adjacent ballast blocks are tightly packed together with no gaps, using mutual pressure to enhance overall stability.

• The ends of each row are secured to container lashing points with steel wire ropes and tensioners as a whole to prevent horizontal displacement.

• When multiple rows are arranged longitudinally, timber separators are placed between rows to prevent longitudinal movement.

• Connection holes and machined surfaces are sealed with plastic plugs or tape to prevent seawater corrosion.

• After the entire vessel is lashed, photographs are taken for documentation, and a lashing inspection certificate is issued.

Step 4: Port Operations
We submit the heavy‑lift operation plan to the terminal in advance, coordinate lifting and handling equipment (cranes, etc.) to ensure smooth delivery of the cargo to the port. Dedicated supervisors oversee the loading, re‑inspect the stowage arrangement and lashing condition, and only after confirmation arrange for vessel loading. We also cooperate with customs inspections and assist with clearance procedures.

Step 5: Ocean Freight Booking
Based on piece weight, quantity, and destination port, we select the most suitable vessel type and route, prioritising shipping lines with proven experience in heavy cargo transport. Our main cooperating vessel types include: breakbulk / general cargo vessels, multi‑purpose vessels, and heavy‑lift vessels. We cover major ports from China to Southeast Asia, the Middle East, Africa, South America, and Europe. We also provide recommendations for marine insurance solutions.

Step 6: Destination Delivery
We notify the consignee in advance of the voyage schedule and estimated time of arrival, assist with discharging and customs clearance at the destination port, and coordinate local transport resources for last‑mile delivery. Throughout the process, we provide full tracking of all logistics milestones and keep you updated with real‑time transport status.
